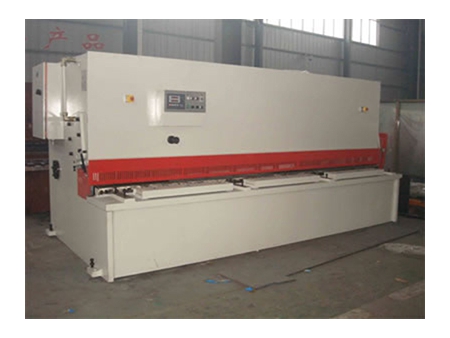

QC12Y series Hydraulic Pendulum Plate Shearing Machine

Characteristics of QC12Y series Hydraulic Pendulum Plate Shearing Machine

  • QC12Y series hydraulic pendulum plate shearing machine is designed with welded-steel plate construction, hydraulic drive system and nitrogen gas spring.
  • It has the features of elegant appearance, easy operation, high rigidity, reliable performance, sturdiness and durability, etc.
  • Cutting edge clearance can be adjusted easily and quickly and the adjustment can be indicated on the indicating board.
  • Our hydraulic pendulum plate shearing machine is equipped with lighting device which can facilitate shearing. 5. It utilizes stepless adjusting mode to control the stroke of top knife rest.
  • Protective fence is adopted in the work area to ensure the safety of operators.
  • Our hydraulic pendulum plate shearing machine is fitted with digital display unit to show the back gauge size and shearing times.

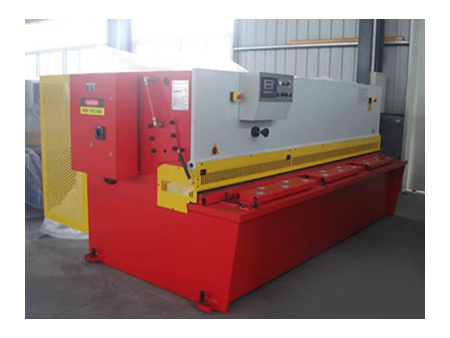

QC12Y series Numerical Control Hydraulic Pendulum Plate Shearing Machine

Characteristics of QC12Y series Numerical Control Hydraulic Pendulum Plate Shearing Machine

  • QC12Y series numerical control hydraulic pendulum plate shearing machine is equipped with pendulous knife rest. The machine body is welded as a whole, so the machine is sturdy and durable.
  • Our numerical control hydraulic pendulum plate shearing machine adopts hydraulic drive mode.
  • It is designed with nitrogen gas cylinder for return stroke and utilizes stepless adjusting mode to control the stroke.
  • The shearing machine can carry out single shearing and automatic continuous shearing.
  • The gap between the edges of upper blade and lower blade can be adjusted easily and quickly with handle.
  • Our numerical control hydraulic pendulum plate shearing machine is fitted with safety fence and electric interlock to ensure the safe operation.
  • CNC system and position encoder constitute the closed loop control system which has the features of high response speed, high precision and good stability. This system can accurately ensure the precision of back gauge displacement. Meanwhile, numerical control system has precision compensatory function, automatic inspection function and some other additional functions.
QC11Y series Hydraulic Guillotine Shearing Machine

Characteristics of QC11Y series Hydraulic Guillotine Shearing Machine

  • QC11Y series hydraulic guillotine shearing machine is designed with all steel welded structure, so it has good rigidity and stability. It utilizes vibrating ageing and heat treatment process to remove internal stress.
  • Our hydraulic guillotine shearing machine is equipped with advanced integrated type hydraulic system which has good reliability.
  • It adopts three-point form rolling guide to eliminate the guide rail gap and improve shearing quality.
  • Motorized back gauge can be finely adjusted by hand and the adjusting value can be shown on the digital display.
  • The gap between blades can be adjusted with hand wheel easily and quickly.
  • The four cutting edges of rectangular blades are all usable, so these blades have long service life. The shear angle can be adjusted to reduce the deformation of sheet materials.
  • The top knife rest adopts inner-inclined structure to facilitate blanking and improve working precision.
  • Our hydraulic guillotine shearing machine has nibbling shear function and is fitted with lighting device.
  • Rear material holding device is also available and you can also choose other configurations.

Shearing Machine
Shearing machine is used to cut spirited hot ends, cold crops and scraps. It can be rotary shearing machine, scrap shearing machine, cold crop shearing machine, flying shearing machine and alligator shearing machine.

About our Shearing Machine
As a professional shearing machine manufacturer in China, Right Machinery Company can provide hydraulic pendulum plate shearing machines and hydraulic guillotine shearing machines.
Shearing machine is usually used to cut the blank of sheet materials through imposing shearing force on sheet materials with the help of movable upper blade and fixed lower blade.

We have obtained ISO9001:2000 certification and ISO9001:2008 certification, so you can feel secure in using our shearing machines.

In addition to hydraulic shearing machines, we also offer fertilizer equipment, bucket lifters, ball screw/ guiders, press brakes, etc. All of our products come with 12-month warranty. Within the warranty period, we can help install and debug the equipment, train your operators and provide maintenance service for you. The high quality of our products and our considerate service are highly approved by our customers in Singapore, Malaysia, India, Pakistan, Iran, Turkey, Egypt, Nigeria, Saudi Arabia and more.

Located in Nantong city in Jiangsu Province, we are near to highways and sea ports. This not only can help reduce your transportation cost, but also enables us to deliver your goods in time. In general, we can deliver the fertilizer equipment within 3 to 4 months after receipt your order and the rolling functional parts with 30 to 60 days after the receipt of your order.

Please contact us if you want to get more information about our shearing machines, fertilizer equipment, or other products. OEM service is also available, upon request.

Parameters of Hydraulic Pendulum Plate Shearing Machine
Specification Shearing Thickness Shearing Width Shear Angle Number of Stroke Back Gauge Range Main Motor Power
mm mm (º) min-1 mm kw
QC12Y-4×2500 4 2500 1º30' 18 20~500 4
QC12Y-4×3200 4 3200 1º30' 18 20~600 5.5
QC12Y-4×4000 4 4000 1º30' 12 20~600 5.5
QC12Y-4×5000 4 5000 1º30' 10 20~600 5.5
QC12Y-4×6000 4 6000 1º30' 7 20~800 7.5
QC12Y-6×2500 6 2500 1º30' 18 20~600 7.5
QC12Y-6×3200 6 3200 1º30' 14 20~600 7.5
QC12Y-6×4000 6 4000 1º30' 12 20~600 7.5
QC12Y-6×5000 6 5000 1º30' 10 20~600 7.5
QC12Y-6×6000 6 6000 1º30' 7 20~800 7.5
QC12Y-8×2500 8 2500 1º30' 14 20~600 7.5
QC12Y-8×3200 8 3200 1º30' 10 20~600 7.5
QC12Y-8×4000 8 4000 1º30' 8 20~600 11
QC12Y-8×5000 8 5000 1º30' 7 20~800 15
QC12Y-8×6000 8 6000 1º30' 6 20~800 15
QC12Y-8×8000 8 8000 1º30' 5 20~800 15
QC12Y-10×2000 10 2000 1º30' 12 20~600 11
QC12Y-10×2500 10 2500 1º30' 10 20~600 11
QC12Y-10×3200 10 3200 1º30' 10 20~600 11
QC12Y-10×4000 10 4000 1º30' 8 20~600 15
QC12Y-12×2000 12 2000 12 20~600 15
QC12Y-12×2500 12 2500 10 20~600 15
QC12Y-12×3200 12 3200 9 20~600 15
QC12Y-12×4000 12 4000 8 20~800 18.5
QC12Y-12×5000 12 5000 7 20~800 22
QC12Y-12×6000 12 6000 6 20~800 22
QC12Y-12×8000 12 8000 5 20~800 22
QC12Y-16×2500 16 2500 8 20~600 18.5
QC12Y-16×3200 16 3200 7 20~600 18.5
QC12Y-16×4000 16 4000 5 20~800 18.5
QC12Y-20×2000 20 2000 2º30' 8 20~600 22
QC12Y-20×2500 20 2500 2º30' 6 20~800 22
QC12Y-20×3200 20 3200 2º30' 6 20~800 30
QC12Y-20×4000 20 4000 2º30' 6 20~800 30
QC12Y-25×2000 25 2000 6 20~800 30
QC12Y-25×2500 25 2500 6 20~800 30
QC12Y-25×3200 25 3200 6 20~800 37
QC12Y-30×2500 30 2500 3º30' 6 20~800 37
QC12Y-30×3200 30 3200 3º30' 5 20~800 45
QC12Y-40×2500 40 2500 3º30' 5 20~800 45
QC12Y-40×3200 40 3200 3º30' 5 20~800 55
QC12Y-50×3000 50 3000 3º30' 5 20~800 75
QC12Y-60×4000 60 4000 3º30' 5 20~800 90
Parameters of Hydraulic Guillotine Shearing Machine
SpecificationShearing ThicknessShearing WidthNumber of StrokeBack Gauge RangeShear AngleThroat DepthMain Motor PowerOverall Dimensions
mmmmmin-1mm(º)mmkwmm(L×W×H)
4×25004250025-456000.5-1.51005.53000×2000×1850
6×25006250020-457500.5-1.51257.53030×2075×1920
6×32006320016-457500.5-1.51257.53730×2075×1970
6×40006400014-457500.5-1.51257.54530×2075×2080
6×50006500011-407500.5-1.51257.55530×2075×2210
6×6000660009-367500.5-1.51257.56530×2075×2520
7×7000770007-287500.5-1.51257.57530×2075×2830
8×25008250020-457500.5-1.51257.53040×2075×1920
8×32008320016-457500.5-1.51257.53740×2075×1920
12×250012250012-3510000.5-2125,300153110×2575×2210
12×32001232007-3510000.5-2125,300153810×2575×2420
12×40001240008-3510000.5-2125,300304610×2575×2530
16×250016250016-4010000.5-2.5125,300223130×2655×2200
16×400016400012-4010000.5-2.5125,300304630×2655×2570
20×250020250016-4010000.5-2.5125,300303160×2855×2300
20×400020400012-4010000.5-2.5125,300304660×2855×2720
