Remplisseuse boucheuse automatique pour poudre
Demande de devis
Application
The automatic filling line with capper is designed for filling, weighing and waste discharging. It is utilized for packaging powder and granule products, such as milk powder, rice flour, coffee, aginomoto, solid beverage, glucose and solid drugs.

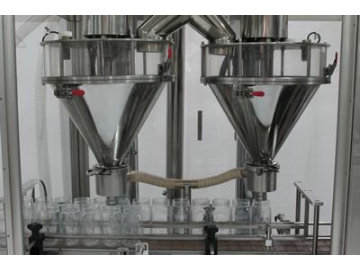

- Double head filling device

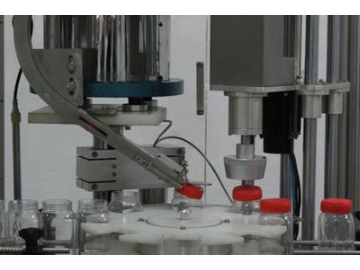

- Rotary capping
Paramètre
Volume of filling: 3-500ml(via changing screw rods)
Quantities of the filling device: 2 Sets
Filling speed: 30-60 B/min
Filling accurancy: 0.75%
Volume of hopper: 30L×2
Density of the compressed air: 5-6Kg/cm 0.2m3/min
Power supply: 3P 080V/220V 50-60Hz 2500W
Dimension: 2400×1100×1800mm(L×W×H)
Weight: 750Kg
- Powder filling and capping can be finished on the automatic filling line with capper in order.
- The operator only needs to set the volume of filling on the touch screen when using the filler, and the servo motor drives the screw rods.
- Our filling machine can be suitable for filling different products with changing different screw rods.
- The filler produced by our company can change the caps fixer for capping various kinds of caps.
- There are six positions on the machine for detecting, which ensure the machine operating correctly and intelligently. The working status displays on the touch screen.
- The hopper can be opened from each side, it is convenient for users to clean it.
- Automatic filling line with capper can be matched with material feeding system.
